How Does Pneumatic Butterfly Valve Actually Work

Time: 14-July 2025 | Source: I-FLOW| Share

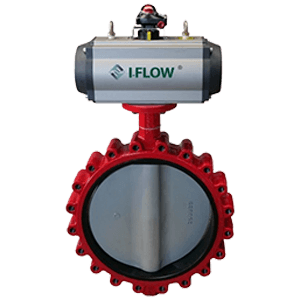

Picture This: A Disc, a Pipe, and a Burst of Air

At the core of a butterfly valve is a flat disc mounted on a shaft. When that disc turns sideways (parallel to the pipe), water or gas flows through freely. When it turns perpendicular, it blocks the path and stops flow.

Now add a pneumatic actuator—a device powered by compressed air. When the control system sends a signal, a burst of air pushes a piston or diaphragm inside the actuator. That air pressure moves the valve’s shaft, turning the disc. Simple, fast, and completely remote.

Why Use Pneumatic Over Manual or Electric

  • Speed: Pneumatic valves open and close in seconds.
  • Safety: Ideal for explosive or wet environments—no electricity needed.
  • Power: They handle high-pressure systems better than electric actuators in many cases.
  • Automation-ready: They integrate easily into process control systems.

And for systems that need to stay open (or closed) during emergencies, spring-return models can default to a safe position without power or air.


Where Do They Shine

  • Large HVAC cooling towers
  • Food and beverage processing
  • Oil refineries and chemical tanks
  • Pulp and paper systems
  • Industrial gas lines

Basically, anywhere large volumes need fast, reliable flow control.

Quick Buying Tips

  • Go for EPDM or PTFE seats if working with corrosive fluids.
  • Use double-acting actuators for better positioning control.
  • Choose wafer or lug body styles depending on pipeline needs.
  • Check the air supply specs—dry, filtered air is a must for long life.
