Understanding The Key Differences Ball Valve Butterfly Valve

Time: 22-October 2025 | Source: I-FLOW| Share

Valves are essential components in any fluid control system. Among the most widely used are ball valves and butterfly valves — both reliable options for regulating or isolating flow. However, they differ in design, function, and application, which directly affects performance, cost, and suitability.

1. Structure and Operation

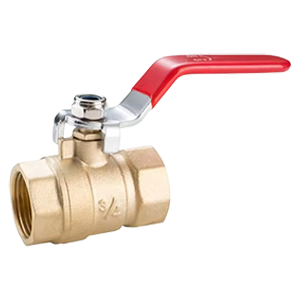

A ball valve uses a rotating spherical ball with a hole through its center. When the handle turns 90 degrees, the hole aligns with the pipeline, allowing fluid to pass. Rotating it back blocks the flow completely. This quarter-turn mechanism provides tight shut-off and minimal leakage.

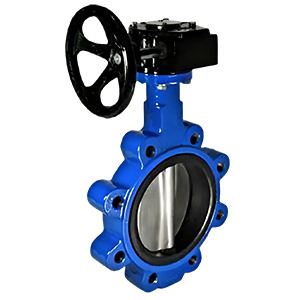

A butterfly valve, on the other hand, uses a rotating disc mounted on a shaft inside the valve body. The disc turns around its axis to open or close the passage. It also requires just a 90-degree turn but allows a more compact and lightweight design compared to the ball valve.


2. Flow Control and Performance

Ball valves are known for excellent sealing and low pressure drop, making them ideal for applications requiring complete shut-off, such as gas lines or chemical processing. The smooth bore design ensures minimal turbulence.

Butterfly valves provide good throttling performance and fast operation, though their disc remains inside the flow path even when fully open. This can cause slight pressure loss, but it is negligible for many HVAC, water supply, and fire-protection systems.


3. Installation and Maintenance

Butterfly valves are lighter and require less space, which simplifies installation and reduces cost, especially in large-diameter pipelines. Their simple structure also makes them easier to maintain.
Ball valves, though heavier, are extremely durable and resistant to wear, especially when made of stainless steel or brass. They can handle high pressure and temperature conditions effectively.

4. Cost and Applications

In general, butterfly valves are more economical for large pipe sizes due to their lightweight build and lower material usage. They are widely used in water treatment, HVAC, and marine systems.
Ball valves, while more expensive in larger sizes, offer superior tightness and are commonly used in oil, gas, and chemical industries where zero leakage is crucial.
