Features

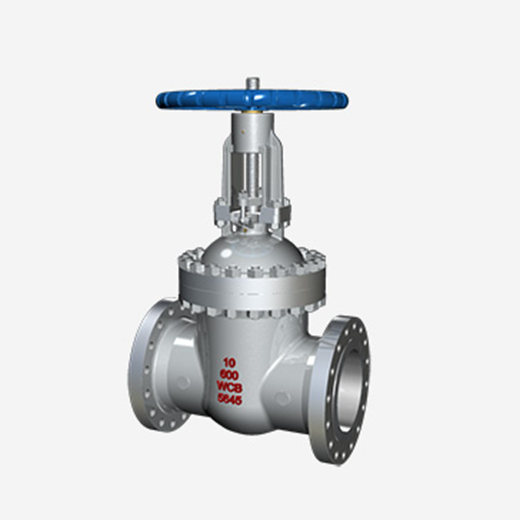

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design and Manufacture Conform to API 600
· Flange dimensions Conform to ASME B16.5
· Face to Face dimensions Conform to ASME B16.10
· Testing Conform to API 598
· Driving mode: hand wheel, bevel gear, electric

Specification

Part Name Material
Body A216-WCB
Wedge A216-WCB+CR13
Bonnet Stud Nut A194-2H
Bonnet Stud A193-B7
Stem A182-F6a
Bonnet A216-WCB
Stem Back Seat A276-420
Eyebolt pin Carbon Steel
Handwheel Ductile Iron

Dimensions Data

NPS23456810121416182024
L177.8190.5203.2228.6254266.7292.1330.2355.6381406432457508
D152178191229254279343406483533597635699813
D1120.7139.7152.4190.5215.9241.3298.5362431.8476.3539.8577.9635749.3
D292105127157186216270324381413470533584692
b14.416.417.922.422.423.926.928.930.233.935.438.441.446.4
n-d4-194-194-198-198-228-228-2212-2512-2512-2916-2916-3220-3220-35
f1.61.61.61.61.61.61.61.61.61.61.61.61.61.6
H345387430513583648790935110012001330148016351935
W200200250250300300350400450500500600600650
