Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design and Manufacture Conform to ANSI B16.34
· Flange dimensions Conform to ASME B16.5
· Face to Face dimensions Conform to ASME B16.10
· Testing Conform to API 598

Specification

Part Name Material
Body A216-WCB+Cr13
Disk A105+Cr13
Stem A182-F6a
Bonnet Stud A193-B7
Bonnet Stud Nut A194-2H
Bonnet A216-WCB
Stem Back Seat A276-420
Packing Graphite
Gland A276-420
Gland Flange A216-WCB
Yokesleeve Aluminum-Bronze
Handwheel Steel

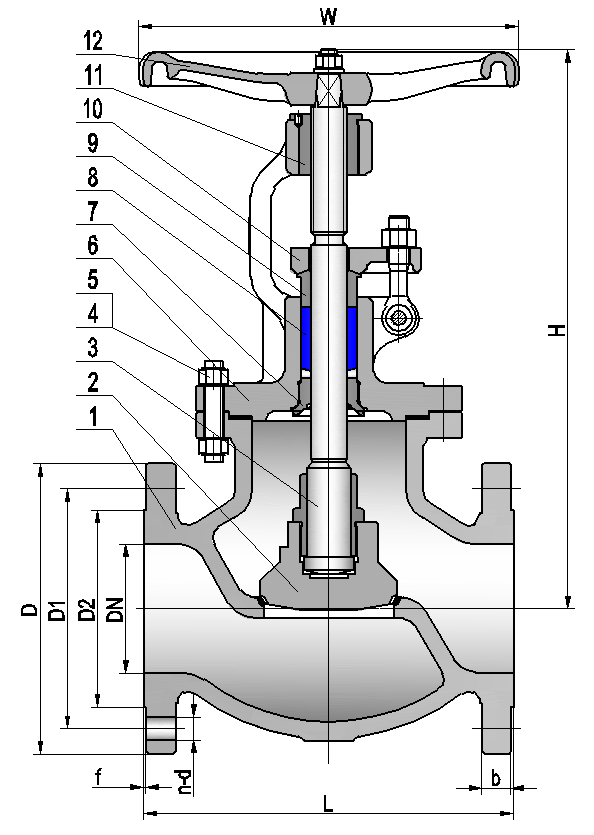

Dimensions Data

DN2345681012
L203216241292356406495622698
D152178191229254279343406483
D1120.7139.7152.4190.5215.9241.3298.5362431.8
D292105127157186216270324381
b14.416.417.922.422.423.926.928.930.2
n-d4-194-194-198-198-228-228-2212-2512-25
f1.61.61.61.61.61.61.61.61.6
H300338370442505520585688765
W200250250300350350400450500
