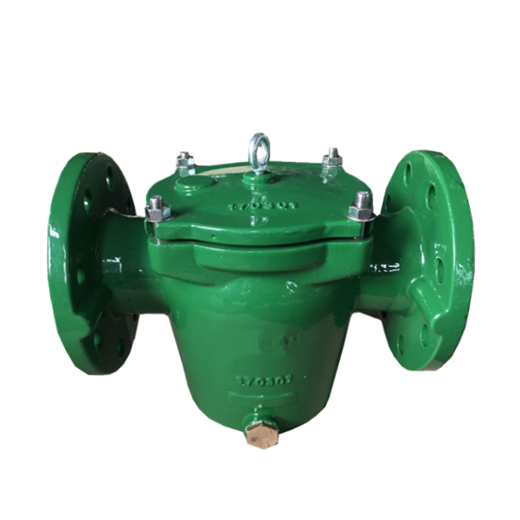

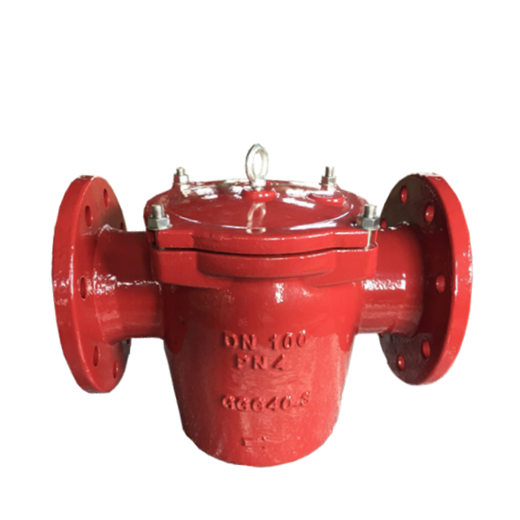

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Flange dimenions conform to EN1092-2 PN10.
· Inspection to EN12266-1.
· Mesh size: 5mm square for DN40-65, 8mm square for DN80-DN400 with 4mm between each two holes.

Specification

PART NAME MATERIAL
Lifting lug Steel
Cover Cast Iron
Gasket NBR
Body Cast Iron
Screen Stainless Steel
Bolts Stainless Steel
Drain plug Brass

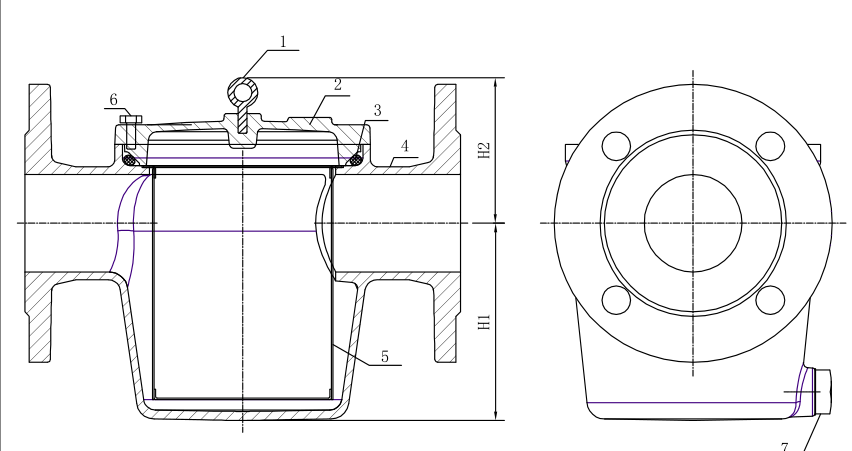

Dimensions Data

DN L Dg Dk D f b n-d H1 H2
DN40 200 84 110 150 3 19 4-8 107 113
DN50 230 99 125 165 3 19 4-8 115 123
DN65 290 118 145 185 3 19 4-8 138 132
DN80 310 132 160 200 3 19 8-8 151 140
DN100 350 156 180 220 3 19 8-8 182 150
DN125 400 184 210 250 3 19 8-8 239 160
DN150 480 211 240 285 3 19 8-8 257 185
DN200 600 266 295 340 3 20 8-8 333 227
DN250 600 319 350 395 3 22 12-22 330 284
DN300 600 370 400 445 4 24.5 12-22 350 315
DN350 610 429 460 505 4 24.5 16-22 334 341
DN400 740 480 515 565 4 24.5 16-28 381 376
