Features

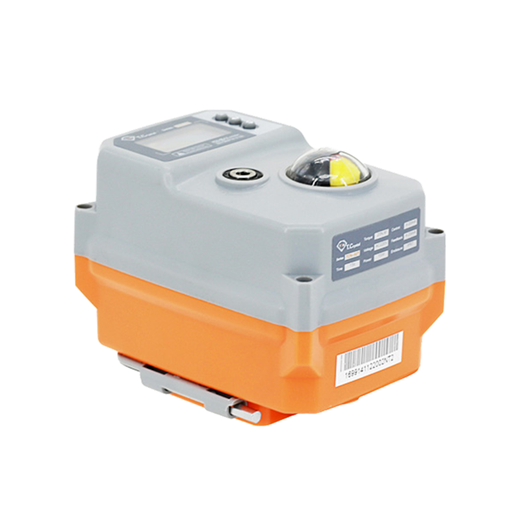

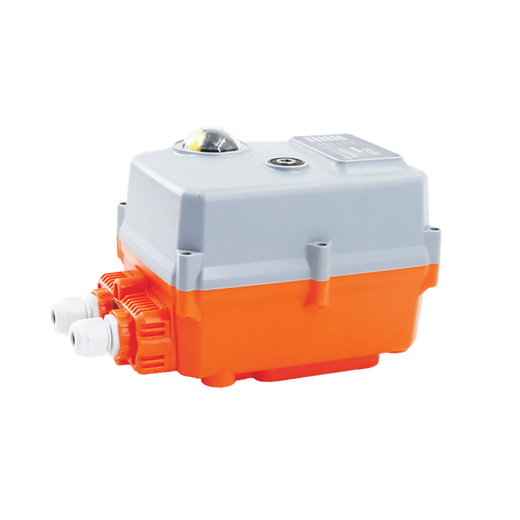

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Install valves:2-way,3-way ball valve and butterfly valve
· Rated voltage: DC12V, DC24V, AC24V/110V/ 230VAC/ DC95V-265V, AC/ DC24V
· Ambient Temp -20°C To +70°C Intelligent on-off Type and -20°C To +60°CIntell igent Adjusting Type
· Running time: about 3-5s

Specification

Dimensions Data

◎ install valves:2-way,3-wayball valve and brtterfly valve
◎ Rated voltage: DC12V,DC24V,AC24V/110V/230VAC/DC95V-265V,AC/DC24V
◎ Running time: about 3-5S
◎ Timer mode: pulse mode , time mode
◎ Control signal: 4-20mA,0-20mA,0-10V,0-5V,1-5V,2-10V
◎ Position feedback: 4-20mA
◎ Position accuracy: ±1%
◎ Timer mode: pulse mode , time mode
◎ Loop mode : loop by days , loop by weeks
◎ Communication Mode: RF433/868/915MHZ,FSK,LORA,RF Ocean (single control)
◎ Communication protocol: Compatible Modbus
◎ Wireless Module: SX1278/SX1276/A7108
◎ Communication distance: The max is 3Km
◎ Control feedback mode:RS485(Modbus),CANBus 2.0B(customized),Mbus(customized),YW44 ( achieve the level control
   by directly connected to the level sensor), KT32J,B3S,B3P,B3R,B3SR,BD3S,BD3J,B3J,B33J,B43J(synchronous)
◎ Alarm output: A(Relay contact feedback)
◎ Be achievable: 2 way mode/3 way mode
◎ High performance brushless motor,overload protection with motor self-clock unit of internal
◎ It can be used up to 20,000 times
◎ Two or more actuators can be used in parallel
※ For AC series,it is forbidden to use two or more actuators in parallel
※RS485 could parallel 32/64/256 actuators in max,while CANBus parallels 110 actuators

Simple on/off actuator selection guide- Standard Series

Model
Torque
Voltage
Wiring
Feedback
Time
Speed
regulation
Rotation
angle
Enclosure
Manual
override
Position
indicator
Housing
materia
Output
shaft
TCR-06N
60Nm
DC24V
B3/BD3
S Type
P Type
R Type
10s
None
90°/180°
≤330°
IP67
or
F Type
Hexagon
spanner
Mechanical
indicator
ABS
Female
octagon
AC24V
AC110V
AC230V
15S
TCR-11N
110Nm
DC24V
B3/BD3
S Type
P Type
R Type
15s
None
90°/180°
≤330°
IP67
or
F Type
Hexagon
spanner
Mechanical
indicato
ABS
octagon
AC24V
10s
AC110V
AC230V
15s
