Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

The Float Steam Trap is an advanced condensate drainage solution designed to efficiently remove condensate water from steam pipelines and heating equipment while minimizing steam loss. Featuring a precision-ground stainless steel float ball and all-stainless-steel construction, it provides stable drainage performance, excellent corrosion resistance, and long service life for various industrial steam systems.

Specification

Part Name MATERIAL
Body Cast iron
Float Ball Stainless Steel
Seat Chromium Stainless Steel
Internal Filters Stainless steel
Gasket Stainless Steel Metal Spiral Wound Gasket

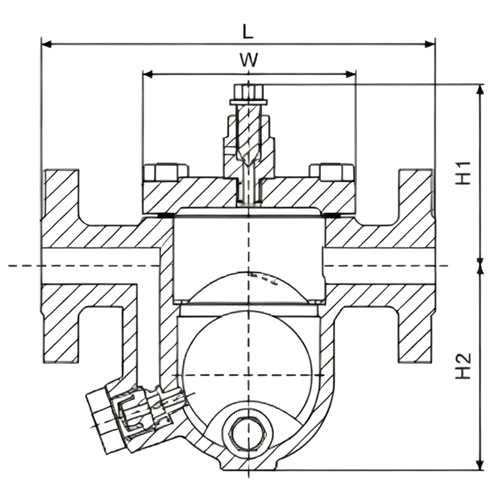

Dimensions Data

ModelDNConnectionPressure Range(MPa)Temperature(℃)LL1H1H2W
SFT14-16C15~20Thread0.01~1.63501211505555107
SFT14-16C25Thread0.01~1.63501301575555107
SFT14-16C15~20Flange0.01~1.63501701505555107
SFT14-16C25Flange0.01~1.63501901575555107
SFT16-16C15~25Thread0.01~1.635019022012080140
SFT44-16C(SFT43/SFT46)15~20Flange0.01~1.635015022585115110
SFT44-16C(SFT43/SFT46)25Flange0.01~1.635016022585115110
SFT44-16C(SFT43/SFT46)32~50Flange0.01~1.6350230355175110186
SFT44-16C(SFT43/SFT46)65~100Flange0.01~1.6350350478253155267
