Features

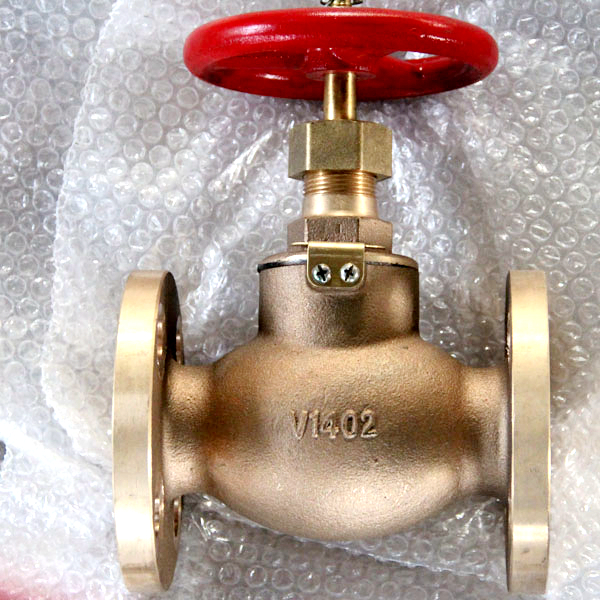

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· DESIGN STANDARD:JIS F 7398-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42-0.4

Specification

HANDLE FC200
STEM C3771BD OR BE
DISC BC6
BONNET BC6
BODY FC200
NAME OF PART MATERIAL

Dimensions Data

DN d L D C NO. h t H D2
15 15 110 95 70 4 15 12 130 80
20 20 120 100 75 4 15 14 140 100
25 25 130 125 90 4 19 14 150 125
32 32 160 135 100 4 19 16 165 125
40 40 180 140 105 4 19 16 185 140
