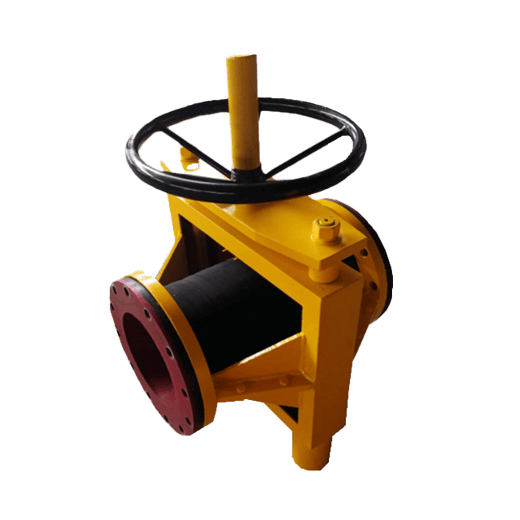

Pinch Valves Benefits, Challenges, and Best Practices

Time: 29-April 2025 | Source: I-FLOW| Share

When fluid slurries, powders, or delicate liquids must flow without contamination or clogging, pinch valves deliver a clean, reliable solution. Below, discover their unique advantages, common pitfalls, and how to pick the perfect sleeve for your process.


1. What Makes Pinch Valves Special

  • Sleeve-Only Contact: The elastomer sleeve is the only part touching the product, so fluids—whether abrasive sand or sterile biochemicals—never touch metal.
  • Simple On/Off Action: A quarter-to-full compression “pinches” shut; releasing pressure lets the sleeve rebound and restore full-bore flow.
  • Bi-Directional Seal: No separate check valve needed—backflow is blocked by the same sleeve closure.

2. Key Advantages at a Glance

  • Hygienic Operation: No internal crevices for bacteria or solids build-up—ideal for food, beverage, and pharmaceutical lines.
  • Abrasion Resistance: The tough elastomer handles gritty slurries and powders without eroding a steel body.
  • Low Maintenance: With no balls, discs, or seats to align, sleeve changes are fast; the body remains in place.
  • Flexible Actuation: Hand levers, pneumatic pistons, or electric motors can all compress the sleeve.

3. Choosing the Right Sleeve & Body

☆Elastomer Compatibility

  • EPDM for water, steam, and mild acids
  • Viton™ for oils, solvents, and stronger chemicals
  • Neoprene for general-purpose slurry service

☆Size & Flow Needs

  • Confirm your system’s Cv requirement; oversized bodies ease viscous flows.

☆Actuation Style

  • Manual for infrequent on/off tasks
  • Pneumatic for rapid cycling in wastewater or mining
  • Electric for integration into PLC-driven process lines

4. When and Where to Deploy Pinch Valves

  • Wastewater Treatment: Sludge, grit, and filter backwash lines.
  • Mining & Minerals: Tailings, ore slurries, and chemical dosing.
  • Food & Beverage: Juices, dairy, and brewery transfer—meets sanitary standards.
  • Chemical Processing: Corrosive acids, polymers, and catalyst slurries.
  • Pharma & Biotech: Sterile media transfers, cell-culture feed lines.
